Plug TypeC14
-
Connector TypeC19 x2
-
Connector TypeC19 x2
-
Length1 Foot Plug End / 1 Foot Legs, 2 Foot Plug End / 1 Foot Legs, 3 Foot Plug End / 1 Foot Legs, 6 Foot Plug End / 2 Foot Legs
-
Temperature Rating105º C

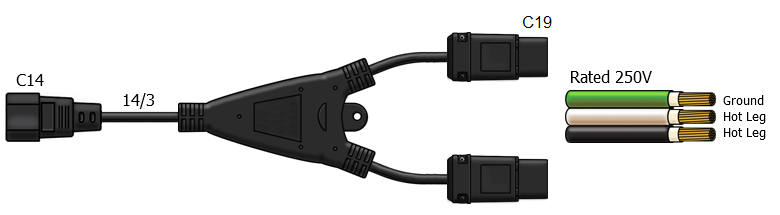

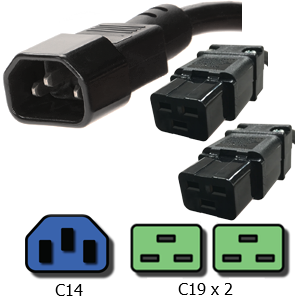

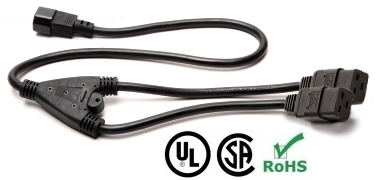

C14 to C19 Splitter Cord, 2 x C19 Legs, 15 Amps, 250V, 14/3 SJT
|
* C14 to C19 X 2 power cords * Split a C14 plug out to 2x C19 branches * Custom lengths available * Rated for 15A and 250V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | C14 |
| Connector Type | C19 X 2 |
| Length | 1 Feet |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Tech Notes: Splits a C14 male plug out to two female C19 connectors
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: C19 to C14 Splitter cable, IEC 320 C14 to C19 Splitter power cord, PDU Splitter cords
Part Number: IBX-2X2710-02
Application Shots:
