Connector Type7-50R
-
Amperage50A
-
Cable TypeTHHN Stranded Wire (Green/Gray + Choice of Hot = Yellow, Orange, or Brown)
-
Connector Type7-50R

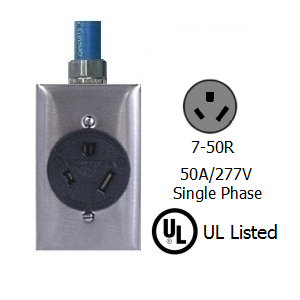

7-50R PDU Whips - 50A, 277V Single Phase Data Center Power Whips
Download PDU Whip Excel Configurator - Use for large quantities and further customizaton options - email sales@pduwhips.com![]() |
* Power whip w/ 1 x 7-50R Outlet Box * For use in data center raised floors * Available in 10 colors, custom lengths * Custom labeling available * Several mounting options available * 8' tails for termination to breaker panel * UL Listed |
Specifications:
| Receptacle | 7-50R |
| Amperage | 50A |
| Voltage | 277V |
| Phase | Single Phase |
| Lengths | 5 foot - 200 foot |
| Colors Available | Blue, Red, Yellow, Black, Green, Purple, Gray, Orange, White, Pink |
| Number of Wires | 3 Wire |
| Wire Gauge | 8 AWG |
| Cable | THHN Stranded Wire (Green/Gray + Choice of Hot = Yellow, Orange, or Brown) |
| Conduit Width | 1/2" |
| Circuit Breaker | Optional |
| Isolated Ground | Optional |
7-50R Straight Blade Whips, NEMA 7-50 PDU cables, 50A Non Nema whips
Customization Options:
Fax Purchase Orders to 1-800-447-1381 or email sales@pduwhips.com Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
