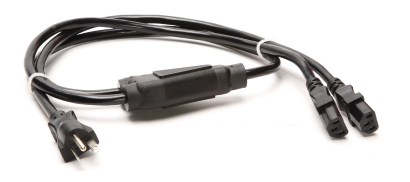

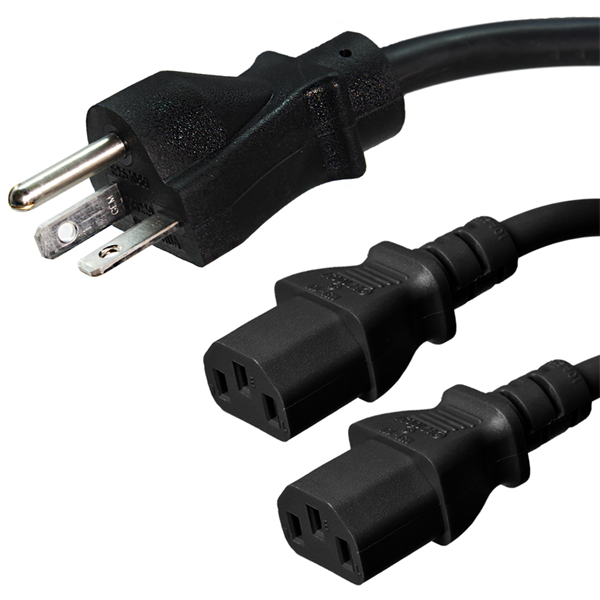

6-20P to 2 x C13 Splitter Power Cords
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a 6-20P input and C13 x2 output(s) to prevent accidental disconnects under vibration and load. tested up to 105º C, these splitters deliver safe, consistent power in marine, RV, and industrial environments. Constructed with 14 AWG conductors and a durable SJT jacket, they offer flexibility and resistance to abrasion, oil, and moisture.
6-20P to 2 x C13 Splitter Power Cords is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Connector TypeC13 x2
-
Temperature Rating105º C
-
Length4 Foot

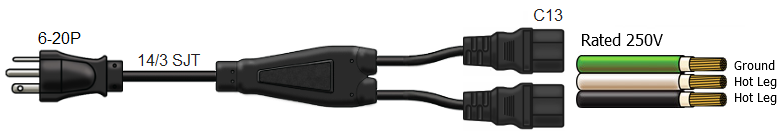

6-20P to C13 Splitter Cord, 2 x C13 Legs, 15 Amps, 250V, 14/3 SJT
|
* 6-20P to C13 X 2 power cords * Split a 6-20P plug out to two C13 branches * Custom lengths available * Rated for 15A and 250V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 6-20P |
| Connector Type | C13 X 2 |
| Length | 4 Feet (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
Tech Notes: Splits a 6-20P male plug out to two female C13 connectors
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: C13 to 6-20P Splitter cable, NEMA 6-20P to C13 Splitter power cord, PDU Splitter cords
Part Number: IBX-2X2740-04 (XX = Length)

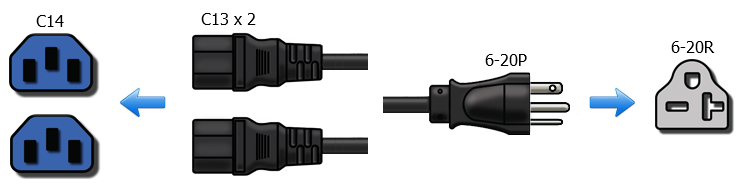

Application Shots:
