Connector Type5-30R
-
Amperage30A
-
Cable TypeTHHN Stranded Wire (Green/Black/Red)
-
Connector Type5-30R
5-30R PDU Whips – 30A, 125V Single Phase Data Center Power Whips
Download PDU Whip Excel Configurator – Use for large quantities and further customizaton options – email sales@pduwhips.com
![]() |

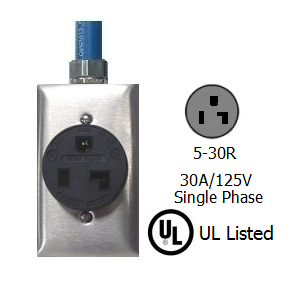

* Power whip w/ 1 x 5-30R Outlet Box
* For use in data center raised floors * Available in 10 colors, custom lengths * Custom labeling available * Several mounting options available * 8′ tails for termination to breaker panel * UL Listed |
Specifications:
| Receptacle | 5-30R |
| Amperage | 30A |
| Voltage | 125V |
| Phase | Single Phase |
| Lengths | 5 foot – 200 foot |
| Colors Available |
Blue, Red, Yellow, Black, Green, Purple, Gray, Orange, White, Pink |
| Number of Wires | 3 Wire |
| Wire Gauge | 10 AWG |
| Cable | THHN Stranded Wire (Green/Black/White) |
| Conduit Width | 1/2″ |
| Circuit Breaker | Optional |
| Isolated Ground | Optional |
Technical Notes: UL Listed, Uses Anaconda LFMC SealTite, Includes 8′ THHN wire tails
Applications: For use in raised data center floors for providing power distribtuon to server rack equipment
Part number: IBX-530R1 – XX Denotes Length, YY is color (BLK, BL, RD, GY, GN, PK, PU, YL, OR, WH)
Custom Made and Non-Returnable
5-30R Straight Blade Whips, NEMA 5-30 PDU cables, 30A NEMA whips

Customization Options:
