Iron Box | SKU:
IBX-4929-03
5-20P to C19 Power Cords, 20A, 125V, 12/3 SJT
$22.69
Unit price
/
Unavailable
Shipping calculated at checkout.
Our locking splitter cords let you power multiple devices from a single source while maintaining secure, twist-lock connections. This splitter features a locking plug input and locking connector output(s) to prevent accidental disconnects under vibration and load. Rated, these splitters deliver safe, consistent power in marine, RV, and industrial environments.
5-20P to C19 Power Cords, 20A, 125V, 12/3 SJT - 3 Foot is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Request for Tax Exemptions
Shipping & Delivery
Shipping & Delivery
Returns & Refunds
Returns & Refunds
Support
Support
-
Length3 Foot, 8 Foot, 12 Foot, 15 Foot

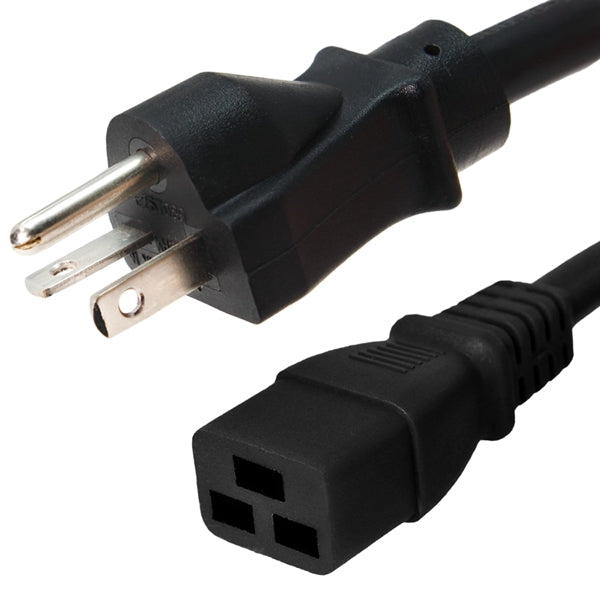

NEMA 5-20P to IEC C19 Power Cords - 20A, 125V, 12/3 AWG Cable
![]() |

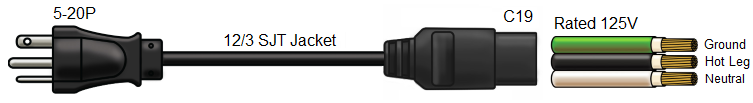

* 5-20P plug to C19 connector power cords * Connect computers/servers to a rack pdu * Available in multiple colors and lengths * Rated for 20A and 125V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 5-20P |
| Connector Type | C19 |
| Length | 1 Through 25 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating | 105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Tech Notes: Custom lengths and wires upgrades are available - Call or email us for a quote
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: C19 to 5-20P cable, NEMA 5-20P power cord, 5-20P to C19, C19 5205P PDU cords
Part Number: IBX-4929-X (X = Length

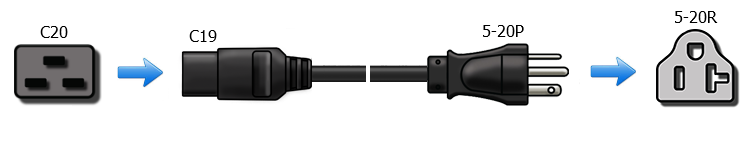

Application Shots:
Fax Purchase Orders to 1-800-447-1381 or email sales@pduwhips.com Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
