Plug Type5-15P
-
Connector TypeC13 (Right Angle)
-
Amperage10A
-
Connector TypeC13 (Right Angle)
-
Length3 Foot, 6 Foot, 12 Foot

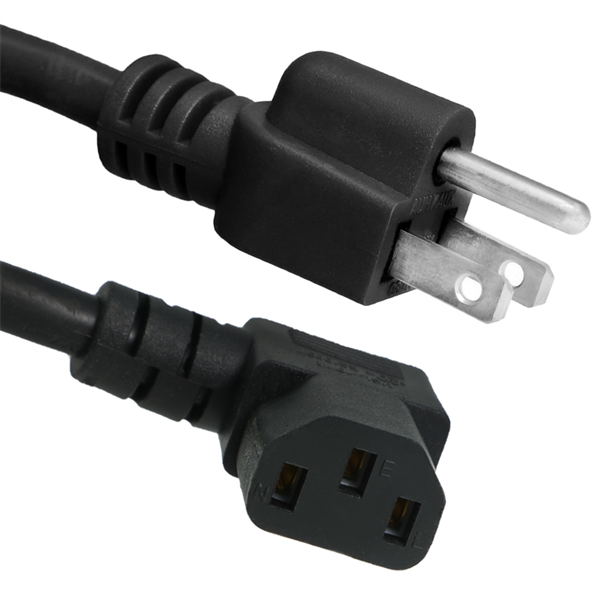

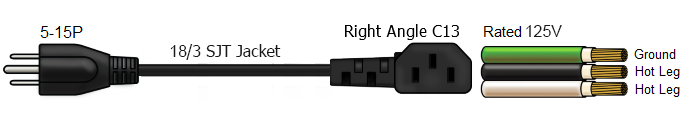

5-15P to Right Angle C13 Power Cords, 10 Amps, 125V, 18/3 AWG
|
* Straight 5-15P to Right angled C13 connector * Connect computers/servers to a rack pdu * Available in multiple lengths * Rated for 10A and 125V * 18 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 5-15P |
| Connector Type | Right Angled C13 |
| Length | 3, 6, 12 Feet |
| Amperage | 10 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 18/3 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |

Tech Notes: PVC cable jacket w/ molded ends
Applications: Right angle C13 receptacle lets you connect a device into a PDU in small spaces
Related Terms: Right angle C13 5-15P, angled C13 power cord, Angled Jumper cords
Part Number: IBX-37850-XX (XX = Length)
Application Shots:
