Plug Type460P9W
-
Connector TypeC19
-
Amperage20A
-
Connector TypeC19
-
Length1 Foot, 3 Foot, 6 Foot, 10 Foot, 15 Foot
-
Temperature Rating105º C

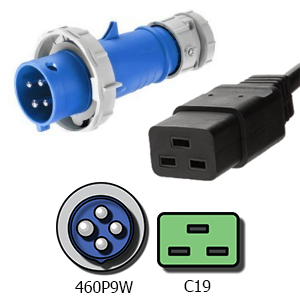

460P9W to C19 Power Cords - 12/3 SJT Cable, 20A/250V
|
* 460P9W to C19 power cord * C20 mates with a C19 male plug * Available in custom lengths and wire AWG * Rated for 20A and 250V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 460P9W |
| Connector Type | C19 |
| Length | 1, 3, 6, 10, 15 Foot Lengths |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |

Tech Notes: The female C19 connector is mated with a male C20 inlet, found on most computers
Applications: Plug a device with a C20 into an 460C9W outlet
Related Terms: C19 to 460P9W cord adapter, 460P9W to C19 power cord, 460P9W plug C19 connector
Part Number: IBX-5945-X (X = Length)
