Plug Type332P6
-
Connector Type316C6 x2
-
Amperage16A
-
Connector Type316C6 x2
-
Length1 Meter, 2 Meter, 3 Meter

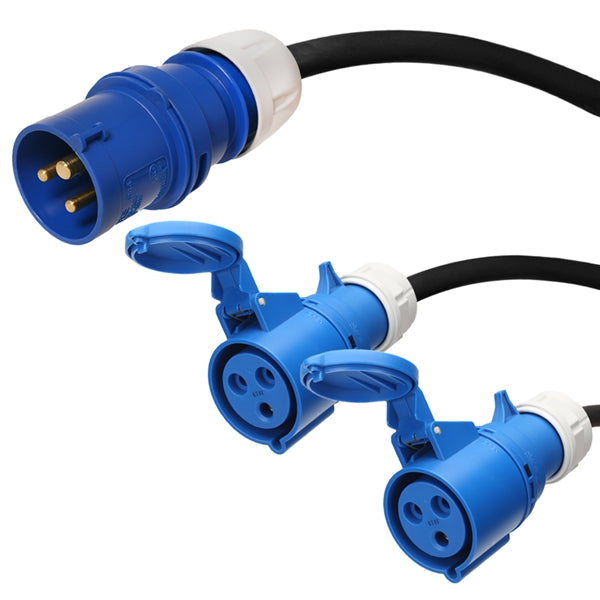

IEC 332P6 to 2 x 316C6 Splitter Power Cord, 16 Amps, 250V, H05VV-F 4.0mm² Cable
|
* IEC 309 332P6 to 316C6 X 2 power cords * Split a 332P6 plug out to 2x 316C6 branches * Custom lengths available * Rated for 16A and 250V * With H05VV-F 4.0mm² Cable Jacket * RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 332P6 |
| Connector Type | 316C6 x 2 |
| Length | 3 and 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available) |
| Amperage | 16 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 4.0mm² |
| Jacket Type | H05VV-F |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | REACH and RoHS Compliant |

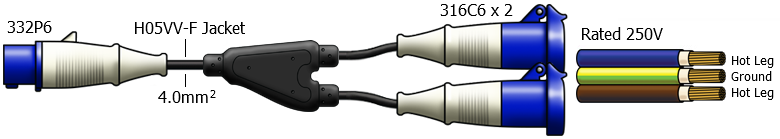

Tech Notes: Splits a 332P6 male plug out to two 316C6 female connectors
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
**This item is custom built to order.
Related Terms: 332P6 to 316C6 Splitter cable, IEC 309 332P6 to IEC 309 332C6 Splitter power cord
Part Number: IBX-4967-XX (X = Length)
Application Shots:
