Plug Type316P6
-
Connector TypeC19
-
Connector TypeC19
-
Length1 Meter, 1.5 Meter, 2 Meter, 2.5 Meter, 3 Meter, 4 Meter

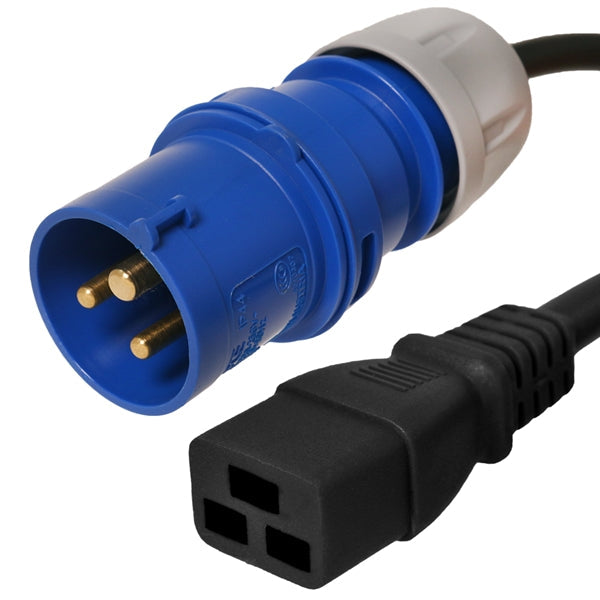

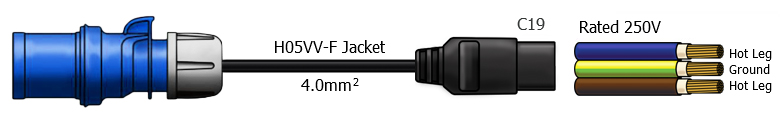

IEC 316P6 Plug to C19 Connector Power Cords, 16A, 250V, H05VV-F 4.0mm² Cable
|
* 316P6 plug to C19 connector power cords * Pin and sleeve plug to IEC connector * Custom lengths available * Rated for 16A and 250V * With H05VV-F 4.0mm² Cable Jacket * RoHS Certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 316P6 |
| Connector Type | C19 |
| Length | 1 Through 4 Meter (Custom Lengths Available) |
| Amperage | 16 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 4.0mm² |
| Jacket Type | H05VV-F |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | REACH and RoHS Compliant |

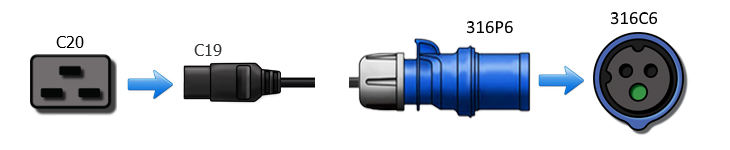

Tech Notes: Pin and sleeve plug to an IEC connector. International rating
Applications: Extend a IEC 309 316P6 plug and C19 connector up to 6 meters
**This item is custom built to order.
Related Terms: 316P6 to C19 cable, IEC 309 316P6 to C19 power cord, IEC 309 316P6 C19
Part Number: IBX-4951-XX (XX = Length)
Application Shots:.jpg)
