Length1 Meter, 1.5 Meter, 2 Meter, 2.5 Meter, 3 Meter, 4 Meter

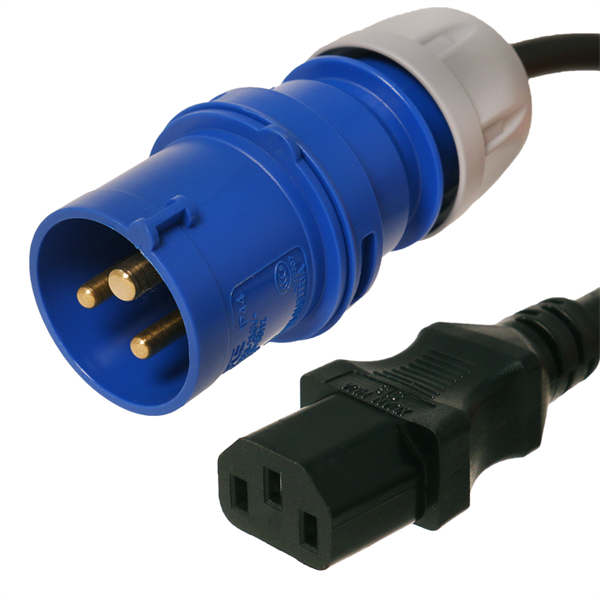

IEC 309 316P6 Plug to C13 Connector Power Cord, 16A, 250V, H05VV-F 4.0mm² Cable
|
* 316P6 plug to C13 connector power cords * Pin and sleeve plug to IEC connector * Custom lengths available * Rated for 15A and 250V * With H05VV-F 4.0mm² Cable Jacket * RoHS Certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 316P6 |
| Connector Type | C13 |
| Length | 1 Through 4 Meter (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 |
| Jacket Type | H05VV-F |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | REACH, RoHS Compliant |
Tech Notes: H05VV-F International Jacket with pin and sleeve plug
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
**This is the custom built to order.
Related Terms: C13 to 316P6 cable, IEC309 316P6 power cords, 16 Amp 316P6 to C13
Part Number: IBX-4950-X (X = Length)
Application Shots:.jpg)
Fax Purchase Orders to 1-800-447-1381 or email sales@pduwhips.com
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
